The tunnel field-effect transistor (TFET) is an experimental type of transistor. Even though its structure is very similar to a metal-oxide-semiconductor field-effect transistor (MOSFET), the fundamental switching mechanism differs, making this device a promising candidate for low power electronics. TFETs switch by modulating quantum tunneling through a barrier instead of modulating thermionic emission over a barrier as in traditional MOSFETs. Because of this, TFETs are not limited by the thermal Maxwell–Boltzmann tail of carriers, which limits MOSFET drain current subthreshold swing to about 60 mV/decade of current at room temperature.

TFET studies can be traced back to Stuetzer who in 1952 published first investigations of a transistor containing the basic elements of the TFET, a gated p-n junction. The reported surface conductivity control was, however, not related to tunneling.[1] The first TFET was reported in 1965.[2] Joerg Appenzeller and his colleagues at IBM were the first to demonstrate that current swings below the MOSFET’s 60-mV-per-decade limit were possible. In 2004, they reported they had created a tunnel transistor with a carbon nanotube channel and a subthreshold swing of just 40 mV per decade.[3] Theoretical work has indicated that significant power savings can be obtained by using low-voltage TFETs in place of MOSFETs in logic circuits.[4]

Drain current vs. gate voltage for hypothetical TFET and MOSFET devices. The TFET may be able to achieve higher drain current for small voltages.

The tunnel field-effect transistor (TFET) is an experimental type of transistor. Even though its structure is very similar to a metal-oxide-semiconductor field-effect transistor (MOSFET), the fundamental switching mechanism differs, making this device a promising candidate for low power electronics. Note that in a TFET, the electrons tunnel between conduction and valence bands as they move into the channel. This is in contrast to what happens in a MOSFET, in which.

In classical MOSFET devices, the 60 mV/decade is a fundamental limit to power scaling. The ratio between on-current and the off-current (especially the subthreshold leakage — one major contributor of power consumption) is given by the ratio between the threshold voltage and the subthreshold slope, e.g.:

n=60mV/decade;Vth=300mV→Ion/Ioff=Vth/n=5decades=100000{displaystyle n=60,mathrm {mV/decade} ;,V_{rm {th}}=300,mathrm {mV} ,rightarrow ,I_{rm {on}}/I_{rm {off}}=V_{rm {th}}/n=5,mathrm {decades} =100,000}

The transistor speed is proportional to the on-current: The higher the on-current, the faster a transistor will be able to charge its fan-out (consecutive capacitive load). For a given transistor speed and a maximum acceptable subthreshold leakage, the subthreshold slope thus defines a certain minimal threshold voltage. Reducing the threshold voltage is an essential part for the idea of constant field scaling. Since 2003, the major technology developers got almost stuck in threshold voltage scaling and thus could also not scale supply voltage (which due to technical reasons has to be at least 3 times the threshold voltage for high performance devices). As a consequence, the processor speed did not develop as fast as before 2003 (see Beyond CMOS). The advent of a mass-producible TFET device with a slope far below 60 mV/decade will enable the industry to continue the scaling trends from the 1990s, where processor frequency doubled each 3 years.

Structure[edit]

The basic TFET structure is similar to a MOSFET except that the source and drain terminals of a TFET are doped of opposite types (see figure). A common TFET device structure consists of a P-I-N (p-type, intrinsic, n-type) junction, in which the electrostatic potential of the intrinsic region is controlled by a gate terminal.

Basic lateral TFET structure.

Device operation[edit]

The device is operated by applying gate bias so that electron accumulation occurs in the intrinsic region for an n-type TFET. At sufficient gate bias, band-to-band tunneling (BTBT) occurs when the conduction band of the intrinsic region aligns with the valence band of the P region. Electrons from the valence band of the p-type region tunnel into the conduction band of the intrinsic region and current can flow across the device. As the gate bias is reduced, the bands becomes misaligned and current can no longer flow.

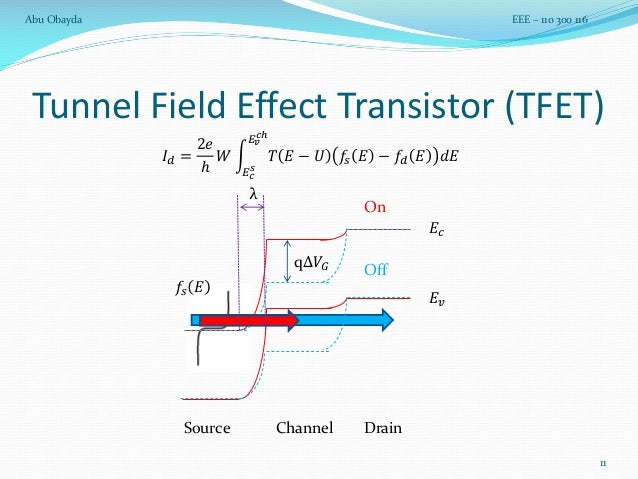

Energy band diagram for a basic lateral TFET structure. The device turns 'on' when sufficient gate voltage is applied such that electrons can tunnel from the source valence band to the channel conduction band.

Prototype devices[edit]

A group at IBM were the first to demonstrate that current swings below the MOSFET’s 60-mV-per-decade limit were possible. In 2004, they reported a tunnel transistor with a carbon nanotube channel and a subthreshold swing of just 40 mV per decade.[5]

By 2010, many TFETs have been fabricated in different material systems,[4] but none has yet been able to demonstrate steep subthreshold slope at drive currents required for mainstream applications. In IEDM' 2016, a group from Lund University demonstrated a vertical nanowire InAs/GaAsSb/GaSb TFET,[6] which exhibits a subthreshold swing of 48 mV/decade, a on-current of 10.6 μA/μm for off-current of 1 nA/μm at a supply voltage of 0.3 V, showing the potential of outperforming Si MOSFETs at a supply voltage lower than 0.3 V.

Tunneling Effect In Mosfet

Gate Tunneling Effect In Mosfet

Theory and simulations[edit]

Double-gate thin-body quantum well-to-quantum well TFET structures have been proposed to overcome some challenges associated with the lateral TFET structure, such as its requirement for ultra sharp doping profiles; however, such devices may be plagued by gate leakage due to large vertical fields in the device structure.[7]

Simulations in 2013 showed that TFETs using InAs-GaSb may have a subthreshold swing of 33 mV/decade under ideal conditions.[8]

The use of van der Waals heterostructures for TFETs were proposed in 2016.[9]

See also[edit]

References[edit]

  1. ^O. M. Stuetzer (1952). 'Junction fieldistors'. 40 (11). Proceedings of the IRE 40: 1377–1381.Cite journal requires |journal= (help)
  2. ^S. R. Hofstein; G. Warfield (1965). 'The insulated gate tunnel junction triode'. 12 (2). IEEE Transactions on Electron Devices: 66–76.Cite journal requires |journal= (help)CS1 maint: uses authors parameter (link)
  3. ^Appenzeller, J. (2004-01-01). 'Band-to-Band Tunneling in Carbon Nanotube Field-Effect Transistors'. Physical Review Letters. 93 (19): 196805. doi:10.1103/PhysRevLett.93.196805. PMID15600865.
  4. ^ abSeabaugh, A. C.; Zhang, Q. (2010). 'Low-Voltage Tunnel Transistors for Beyond CMOS Logic'. Proceedings of the IEEE. 98 (12): 2095–2110. doi:10.1109/JPROC.2010.2070470.
  5. ^Seabaugh (September 2013). 'The Tunneling Transistor'. IEEE.
  6. ^Memisevic, E.; Svensson, J.; Hellenbrand, M.; Lind, E.; Wernersson, L.-E. (2016). 'Vertical InAs/GaAsSb/GaSb tunneling field-effect transistor on Si with S = 48 mV/decade and Ion = 10 μA/μm for Ioff = 1 nA/μm at Vds = 0.3 V'. 2016 IEEE International Electron Devices Meeting (IEDM): 19.1.1–19.1.4. doi:10.1109/IEDM.2016.7838450.
  7. ^Teherani, J. T.; Agarwal, S.; Yablonovitch, E.; Hoyt, J. L.; Antoniadis, D. A. (2013). 'Impact of Quantization Energy and Gate Leakage in Bilayer Tunneling Transistors'. IEEE Electron Device Letters. 34 (2): 298. doi:10.1109/LED.2012.2229458.
  8. ^Device Simulation of Tunnel Field Effect Transistor (TFET). Huang 2013
  9. ^Cao, Jiang; Logoteta, Demetrio; Ozkaya, Sibel; Biel, Blanca; Cresti, Alessandro; Pala, Marco G.; Esseni, David (2016). 'Operation and Design of van der Waals Tunnel Transistors: A 3-D Quantum Transport Study'. IEEE Transactions on Electron Devices. 63 (11): 4388–4394. doi:10.1109/TED.2016.2605144. ISSN0018-9383.
Retrieved from 'https://en.wikipedia.org/w/index.php?title=Tunnel_field-effect_transistor&oldid=1013784937'

DIBL GIDL BTBT and Tunneling effect in CMOS Devices

One must consider these DIBL, GIDL, BTBT, and Tunneling effects while designing in CMOS because these may cause serious issues on the functionality of the design. Understanding these terms is very important in the VLSI design.

Tunneling Effect In Mosfet Diagram

The PN junctions between diffusion-substrate or diffusion-well will form diodes and also well-substrate junction will be another diode. Because of that, only the substrate and well terminals are connected to ground or to the supply voltage in PMOS to ensure these diodes will remain reverse biased but however, these reverse biased diodes will conduct a small amount of current Td and leads to junction leakage.

1. Drain Induced Barrier Lowering (DIBL)

Tunneling Effect In Mosfet Vs

DIBL(Drain Induced Barrier Lowering) in MOSFETs leads to a reduction of the Vth of transistors at high Vds. That is Vth decreases when Vds increases.
Vth = Vt0 - n * Vds Mosfet
Also, DIBL(Drain Induced Barrier Lowering) increases the subthreshold leakage at higher drain voltage (Vds).

2. Gate Induced Drain Leakage (GIDL)

Tunneling effect in mosfet circuitGIDL(Gate Induced Drain Leakage) occurs where the gate partially overlaps with the drain of the MOSFET. It is more pronounced when VDD or Vds levels are at High potential and Vgs is at low potential. GIDL(Gate Induced Drain Leakage) is directly proportional to the gate-drain overlap area and hence transistor width insignificant when Vgd<=VDD (Gate to drain voltage is less than or equal to supply voltage).

Tunneling Effect In Mosfet

When Vgs < 0, this thins out the depletion region between the PN-junction. Since the substrate is at low potential the minority charge carriers that are formed underneath the Gate scatter laterally.

3. Band to Band Tunneling (BTBT)

BTBT(Band to Band Tunneling) occurs across the junction between the source to the body or drain to the body of the transistor when the junction is reverse biased. It also describes the carrier generation in the high field region without any influence of local traps. BTBT (Band to Band Tunneling) is the function of Reverse bias and Doping levels Usually, high halo doping is used to increase the Vth(Threshold Voltage) in order to reduce the Subthreshold leakage, Instead, it causes the BTBT to grow.

Tunneling Effect In Mosfet Circuit


The leakage caused by Trap Assisted Tunneling (TAT) when a defect in the Silicon Lattice called traps which reduces the distance that a carrier must travel.

4. Tunneling Effect

There can be two types of tunneling effect
  1. FN tunneling effect
  2. Direct tunneling effect
From the substrate to the gate there is an electron flow due to tunneling effect as shown in the figure above. The process of carrier tunneling through the gate oxide(SiO2) resulting in the gate leakage current flowing into the gate. As shown in the graph above as the Gate voltage increases the tunneling current also increases. The chances of this tunneling effect reduce or drops off exponentially with the oxide thickness (tox). And sometimes the tunneling effect can be purposely be used to form electrically erasable memory devices such as EEPROM.

Tunneling Effect In Mosfet Testing

If you want to study more about these second-order effects you can refer WESTE 4th edition book and also you can leave a comment in the comment section. Learn and understand all the second-order effects completely if you are a VLSI engineer. These are very important for the interview point also. maintain notes of these and revise before the interview.
